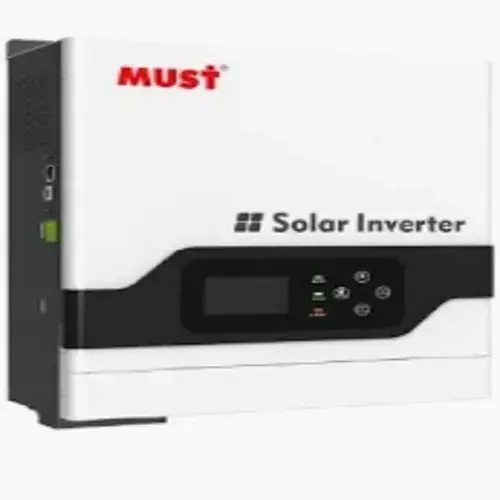

MUST 1kva hybrid Solar inverter

MUST 1kva Hybrid Solar Inverter provides efficient power conversion and energy management for small-scale residential and commercial applications. This compact hybrid system combines pure sine wave inverter technology with integrated solar charge controller functionality, delivering reliable power management in a space-efficient design ideal for entry-level solar installations.

Power Output and System Performance

This MUST 1kva Hybrid Solar Inverter generates 1000VA continuous power output with pure sine wave technology, ensuring clean electricity supply for essential appliances and electronic equipment. The system maintains stable power delivery with high efficiency ratings suitable for basic household power requirements.

Power Specifications:

• Continuous Power: 1000VA (1kVA) rated output capacity
• Peak Power: 2000W surge capability for motor starting applications
• Input Voltage: 12V DC battery bank compatibility
• Output Voltage: 230V AC ±5% voltage regulation
• Frequency: 50Hz ±0.2% frequency stability
• Waveform: Pure sine wave output for equipment protection
• Efficiency: 90% conversion efficiency rating

The compact power conversion system supports essential appliances including lighting, fans, small refrigerators, computers, and communication equipment requiring stable AC power supply.

Integrated Solar Charge Controller Features

The built-in solar charge controller optimizes energy harvest from solar panels through intelligent charging algorithms. This controller automatically adjusts charging parameters based on battery condition and solar panel output, maximizing energy collection throughout varying weather conditions.

Solar Controller Specifications:

• Charging Current: 20A maximum solar input capacity
• Controller Type: PWM (Pulse Width Modulation) technology
• PV Input Voltage: 18V typical solar panel voltage
• Solar Array Power: Up to 300W solar panel capacity
• Battery Types: AGM, Gel, and Flooded lead-acid compatibility
• Charging Stages: Three-stage charging algorithm (bulk, absorption, float)
• Protection Features: Overcharge, over-discharge, and reverse polarity protection

The intelligent charging system extends battery lifespan while ensuring optimal energy storage capacity for reliable backup power operation.

Hybrid Operation and Power Management

The MUST 1kva Hybrid Solar Inverter operates in multiple modes to optimize power usage and battery charging. The system automatically switches between different power sources based on availability and user preferences, ensuring continuous power supply.

Operating Modes:

• Solar Priority Mode: Prioritizes solar power utilization during daylight hours
• Grid-Tie Mode: Integrates with utility power for seamless operation
• Battery Backup Mode: Provides power during grid outages
• Hybrid Mode: Combines solar, battery, and grid power sources
• Automatic Transfer: Switches between sources without interruption

Smart power management ensures critical loads receive priority power allocation while maintaining battery charge levels for extended backup operation.

Monitoring and Control Interface

The system includes user-friendly monitoring capabilities through LED indicators and optional LCD display panel. Users can track system status, battery condition, and power generation for effective energy management.

Monitoring Features:

• LED Indicators: System status, charging mode, and fault indication
• Battery Voltage Display: Real-time battery condition monitoring
• Load Status: Power consumption and output monitoring
• Solar Generation: Solar panel performance tracking
• Alarm Functions: Audio and visual alerts for system faults
• Manual Controls: Operating mode selection and system configuration

The intuitive interface enables easy system monitoring and basic troubleshooting without requiring technical expertise.

Installation and System Integration

Professional installation of the MUST 1kva Hybrid Solar Inverter requires basic electrical connections and proper safety compliance. The compact design simplifies installation in residential and small commercial environments.

Installation Requirements:

• Mounting: Wall-mount design with minimal space requirements
• Wiring: Standard DC and AC electrical connections
• Battery Bank: 12V battery configuration (100Ah recommended minimum)
• Solar Panel: 300W maximum solar array capacity
• Ventilation: Natural convection cooling with adequate airflow
• Environment: Indoor installation with temperature range 0°C to 40°C

Basic electrical knowledge enables straightforward installation while certified electricians ensure compliance with local electrical codes and safety regulations.

Safety Features and Protection Systems

The MUST 1kva Hybrid Solar Inverter incorporates essential protection systems to safeguard connected equipment and prevent damage from electrical faults. These safety features operate automatically to maintain system reliability.

Protection Systems:

• Overload Protection: Automatic shutdown during excessive load conditions
• Short Circuit Protection: Instant fault detection and isolation
• Over-Temperature Protection: Thermal shutdown with automatic recovery
• Low Battery Protection: Prevents deep discharge battery damage
• High Battery Protection: Prevents overcharge conditions
• Reverse Polarity Protection: Prevents damage from incorrect connections

Quality Standards:

• Certifications: CE and RoHS compliance for international markets
• Build Quality: Industrial-grade components for reliable operation
• Testing Standards: Factory quality control and performance verification
• Environmental Compliance: Meets international environmental regulations

Comprehensive safety systems ensure reliable operation while protecting valuable equipment and maintaining user safety throughout normal and abnormal operating conditions.

Applications and Use Cases

The MUST 1kva Hybrid Solar Inverter serves various applications requiring reliable backup power and solar energy integration. The compact design makes it suitable for space-constrained installations and entry-level solar systems.

Typical Applications:

• Residential Backup: Essential home appliances during power outages
• Small Office Power: Computers, lighting, and communication equipment
• Remote Locations: Off-grid cabins, security systems, and telecommunications
• RV and Marine: Mobile power systems for recreational vehicles and boats
• Emergency Power: Disaster preparedness and emergency response systems
• Solar Learning: Educational installations and renewable energy demonstrations
