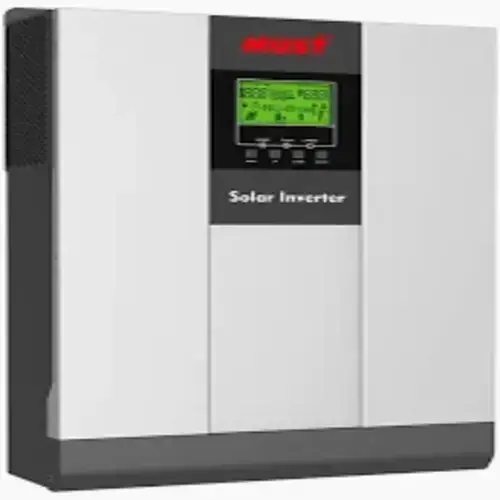

Must 5KVA Hybrid Offgrid Inverter 48V 80A 250VDC

Must 5KVA Hybrid Offgrid Inverter 48V 80A 250VDC provides robust power conversion and energy management for demanding residential and commercial applications. This advanced hybrid system combines high-efficiency pure sine wave inverter technology with integrated MPPT solar charge controller, delivering comprehensive off-grid power solutions with exceptional reliability.

Power Output and System Specifications

This Must 5KVA Hybrid Offgrid Inverter delivers 5000VA continuous power output with pure sine wave technology, ensuring stable electricity supply for high-demand applications. The 48V DC system architecture provides enhanced efficiency and reduced cable losses compared to lower voltage configurations.

Core Power Specifications:

• Continuous Power: 5000VA (5kVA) rated output capacity
• Peak Power: 10,000W surge capability for heavy motor loads
• Input Voltage: 48V DC battery bank configuration
• Output Voltage: 230V AC ±2% precise voltage regulation
• Frequency: 50Hz ±0.05% frequency stability
• Efficiency: 95% peak conversion efficiency rating

The robust power conversion system supports multiple appliances simultaneously, including air conditioning units, refrigeration equipment, power tools, and comprehensive home electrical systems.

Advanced 80A MPPT Solar Charge Controller

The integrated 80A MPPT controller maximizes solar energy harvest through sophisticated maximum power point tracking algorithms. This high-capacity controller accommodates large solar array installations while maintaining optimal charging efficiency across varying environmental conditions.

Controller Performance Features:

• Charging Current: 80A maximum solar input capacity
• MPPT Efficiency: 99% peak tracking efficiency
• PV Input Voltage: 250VDC maximum solar panel voltage
• PV Array Power: Up to 6400W solar panel capacity
• Battery Chemistry: AGM, Gel, Lithium, Flooded lead-acid compatibility
• Temperature Compensation: Automatic charging adjustment for battery optimization

The intelligent charging system supports large-scale solar installations while ensuring battery longevity through precise charging control and multi-stage charging algorithms.

Hybrid Operation and Grid Integration Capabilities

The Must 5KVA Hybrid Offgrid Inverter 48V 80A 250VDC operates in multiple intelligent modes to optimize power usage and energy storage. The system automatically manages power sources based on availability, user preferences, and programmable priority settings.

Operational Modes:

• Pure Off-Grid Mode: Complete independence from utility power
• Grid-Tie Hybrid Mode: Seamless integration with utility grid
• UPS Backup Mode: Uninterrupted power supply during outages
• Solar Priority Mode: Maximizes solar energy utilization
• Battery Priority Mode: Prioritizes stored energy for cost reduction
• Generator Support Mode: Automatic generator start/stop control

Advanced power management ensures optimal energy utilization while maintaining system reliability and extending battery service life.

High-Voltage Solar Array Compatibility

The 250VDC maximum input voltage enables connection of extensive solar panel arrays with series configurations, reducing installation complexity and wiring costs. This high-voltage capability supports modern solar panel technologies and large-scale renewable energy installations.

Solar Array Configuration:

• Maximum Voltage: 250VDC solar panel string voltage
• Operating Voltage Range: 60-250VDC MPPT tracking range
• Array Capacity: Up to 6400W solar panel installation
• Panel Configuration: Series and parallel string combinations
• Grounding: Negative ground system for safety compliance

The flexible solar input configuration accommodates various panel types and installation requirements while maintaining optimal power generation efficiency.

Battery Bank Design and Energy Storage

The 48V DC architecture supports high-capacity battery banks for extended backup power operation. Proper battery configuration ensures adequate energy storage for multi-day autonomous operation during periods of limited solar generation.

Battery System Requirements:

• Voltage: 48V DC battery bank configuration
• Capacity: 200Ah minimum recommended for 8-hour backup
• Chemistry: Lead-acid, AGM, Gel, or Lithium-ion compatibility
• Parallel Configuration: Multiple battery strings for increased capacity
• Temperature Monitoring: Battery temperature sensors for charging optimization
• Safety Features: Battery fuses and disconnect switches for protection

Professional battery system design ensures optimal performance and safety while meeting specific energy storage requirements for different applications.

Advanced Monitoring and Communication Systems

The system includes comprehensive monitoring capabilities through LCD display panel and advanced communication interfaces. Users can track system performance, energy production, and battery status through multiple monitoring platforms.

Monitoring Features:

• Real-Time Display: Power generation, consumption, and battery status
• Communication Ports: RS485, USB, and WiFi connectivity options
• Remote Monitoring: Smartphone applications and web-based platforms
• Data Logging: Historical performance data and trend analysis
• Alarm Systems: Fault detection and notification systems
• Programmable Settings: Customizable operating parameters and schedules

The intelligent monitoring system enables proactive maintenance and performance optimization throughout the system’s operational life.

Professional Installation and Safety Features

The Must 5KVA Hybrid Offgrid Inverter 48V 80A 250VDC incorporates multiple protection systems and safety features to ensure reliable operation and equipment protection. Professional installation ensures proper system integration and compliance with electrical codes.

Safety and Protection Systems:

• Overload Protection: Automatic load management and shutdown
• Short Circuit Protection: Instant fault detection and isolation
• Over-Temperature Protection: Thermal monitoring with cooling control
• Surge Protection: Lightning and voltage spike protection circuits
• Ground Fault Protection: GFCI protection for personnel safety
• Anti-Islanding Protection: Grid-tie safety compliance features

Installation Requirements:

• Mounting: Wall-mount design with adequate ventilation clearance
• Wiring: Professional electrical connections with appropriate circuit protection
• Grounding: Proper earthing connections for safety compliance
• Environmental: Operating temperature range -10°C to 50°C
• Ventilation: Forced air cooling with temperature-controlled fan operation
